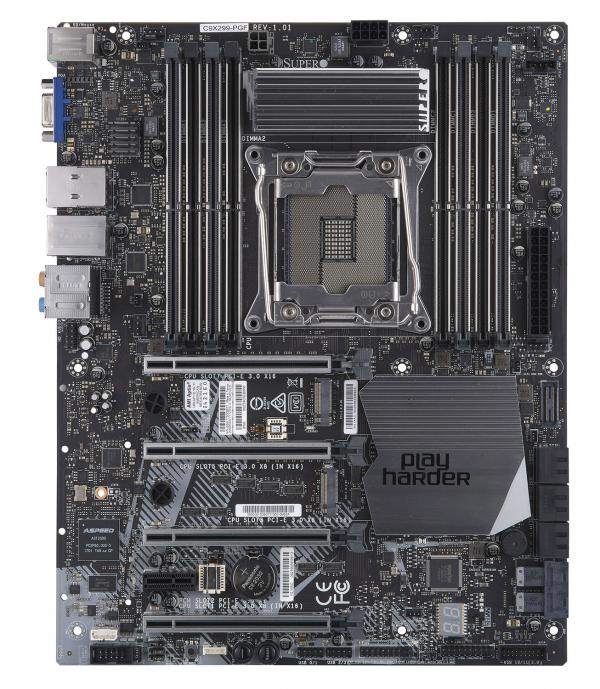

C9X299-PGF iX299,S-R4,4PCI-E16g3,1PCI-E1,1GbE,5GbE,8DDR4,6sATA,2M.2,U.2,audio,ATX,IPMI,retail

Singl Socket R4 (LGA 2066) pro Intel® Core™ i7 X-series Processor, Intel® Core™ i9 Extreme X-series Processor, Intel® Core™ i9 X-series Processor.
Max.TDP 165W
Intel® X299 Chipset
8 DIMM, max.128GB DDR4 2666MHz unbuffered DIMMs
4× PCI-Express ×16 g3 (8/0/16/16 nebo 8/8/8/16 s SKL-X nebo 0/4/8/16 s Kabylake-X)
1× PCI-Express ×1
1× M.2 (2280, 22110 M-key) s PCI-E 3.0 (×4)
1× NVMe U.2 PCI-E 3.0 (×4)
Intel® i210  Singl port Gigabit Ethernet LAN
Intel® Aquantia® AQC107 Singl port 10Gigabit Ethernet LAN
6× SATA3. Podpora RSTe 5.0 (sw Raid 0/1/10/5)
4× USB 2.0 port (4× header Type "A")
4× USB 3.0 port (2× zadní + 2× header)
4× USB 3.1 port (3× Type "A", 1× Type "C")
IPMI 2.0 s KVM. provoz přes LAN
Audio ALC 1220 HD
Mechanické provedení: ATX, 9,6" × 12"
