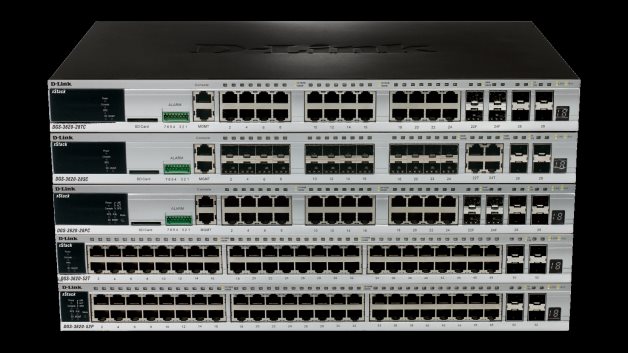

    D-LINK DGS-3620-52P Řízený, stohovatelný switch 48×1GbE,4×SFP+ (10GbE) POE

    Výrobce
    DLINK
    Kód
    LAD DGS-3620-52P
    Part No.
    DGS-3620-52P/SI
    Koncová cena bez DPH
    135 100 Kč
    Recyklační poplatek
    1,00 Kč
    Vaše cena  s RP*
    127 711 Kč
    DPH
    21%
    Záruka
    24 Měsíců


    Prodej

    Vaše cena bez DPH
    127 710 Kč
    Vaše cena s DPH
    154 530 Kč
    Objednat


      Podrobnosti o produktu

      Informace k záruce:
      Na produkt je poskytována omezená doživotní záruka, to znamená, že záruční lhůta vyprší až pět let poté, co společnost D-Link (nebo její nástupce) ukončí prodej daného produktu v Evropě.
      Pro nárok na omezenou doživotní záruku je třeba produkt zaregistrovat (viz níže) u D-Link Europe do třiceti (30) dnů od data zakoupení. Registraci lze provést přes samoobslužný portál.

      http://www.dlink.com/cz/cs/support/product-registration-and-support-log-in

      Features
      Flexibility
      20/48 10/100/1000BASE-T ports or 20 SFP slots
      4 Combo 10/100/1000BASE-T/SFP ports1
      4 10-Gigabit SFP+ uplink ports
      802.3af and 802.3at PoE support2
      Security
      L2/L3/L4 multi-layer Access Control
      External RADIUS/TACACS+ authentication
      SSH/SSL support
      802.1X guest VLAN
      D-Link Safeguard Engine
      Unicast Reverse Path Forwarding (uRPF)3
      Reliability
      Redundant Power Supply (RPS) support
      802.1D/802.1w/802.1s Spanning Tree
      Loopback Detection (LBD)
      Ethernet Ring Protection Switching (ERPS)
      High Bandwidth
      Physical/Virtual Stacking
      Physical stack of up to 12 units, 576 Gigabit ports
      Virtual stack of up to 32 units using single IP management
      OAM
      802.3ah Ethernet link OAM
      802.1ag, ITU-T Y.1731 service OAM

      Interface
      Number of 10/100/1000BASE-TX ports
      DGS-3620-28TC - 20 ports
      DGS-3620-28PC - 20 ports
      DGS-3620-52T - 48 ports
      DGS-3620-52P - 48 ports
      Number of SFP ports
      DGS-3620-28SC - 20 ports
      Number of Combo 1000Base-T/SFP ports
      DGS-3620-28TC - 4 ports
      DGS-3620-28PC - 4 ports
      DGS-3620-28SC - 4 ports
      Number of SFP+ ports
      DGS-3620-28TC - 4 ports
      DGS-3620-28PC - 4 ports
      DGS-3620-28SC - 4 ports
      DGS-3620-52T - 4 ports
      DGS-3620-52P - 4 ports
      Optional redundant power supply
      DGS-3620-28TC - DPS-500
      DGS-3620-28PC - DPS-700
      DGS-3620-28SC - DPS-500
      DGS-3620-52T - DPS-500
      DGS-3620-52P - DPS-700
      RS-232 console port
      Yes
      Management port
      10/100BASE-TX
      Alarm port
      Yes
      SD card slot
      Yes
      PoE Supported Models (Standard(s)/Number of Ports/Maximum Power Budget)
      DGS-3620-28PC - 802.3af/at/24 ports/370W (760W with DPS-700 RPS)
      DGS-3620-52P - 802.3af/at/48 ports/370W (760W with DPS-700 RPS)
      Performance
      Switch Capacity
      DGS-3620-28TC - 128 Gbps
      DGS-3620-28PC - 128 Gbps
      DGS-3620-28SC - 128 Gbps
      DGS-3620-52T - 176 Gbps
      DGS-3620-52P - 176 Gbps
      64-Byte Packet Forwarding Rate
      DGS-3620-28TC - 95.24 Mpps
      DGS-3620-28PC - 95.24 Mpps
      DGS-3620-28SC - 95.24 Mpps
      DGS-3620-52T - 130.95 Mpps
      DGS-3620-52P - 130.95 Mpps
      Packet Buffer
      2 MB
      MAC address table
      32K entries
      IPv4 routing table
      12K entries
      IPv6 routing table
      6K entries
      IPv4 forwarding table
      8K entries
      IPv6 forwarding table
      4K entries
      Jumbo frame size
      130000 bytes
      Physical & Environmental
      MTBF
      DGS-3620-28TC - 292976 hours
      DGS-3620-28PC - 236811 hours
      DGS-3620-28SC - 298263 hours
      DGS-3620-52T - 247929 hours
      DGS-3620-52P - 225645 hours
      Acoustics (max)
      DGS-3620-28TC - 48.5 dB
      DGS-3620-28PC - 52.1 dB
      DGS-3620-28SC - 49.9 dB
      DGS-3620-52T - 54.2 dB
      DGS-3620-52P - 56.2 dB
      Heat Dissipation (max)
      DGS-3620-28TC - 155.8 BTU/hr
      DGS-3620-28PC - 1712.5 BTU/hr
      DGS-3620-28SC - 144.2 BTU/hr
      DGS-3620-52T - 259.1 BTU/hr
      DGS-3620-52P - 1763.3 BTU/hr
      Power Input
      100 to 240 VAC, 50 to 60Hz Internal Universal Power Supply
      Power Consumption (max)
      DGS-3620-28TC - 45.1 W
      DGS-3620-28PC - 502.2 W
      DGS-3620-28SC - 43.4 W
      DGS-3620-52T - 76.0 W
      DGS-3620-52P - 517.1 W
      Dimensions (W x D x H)
      DGS-3620-28TC - 441 x 310 x 44 mm (17.36 x 12.20 x 1.73 inches)
      DGS-3620-28PC - 441 x 310 x 44 mm (17.36 x 12.20 x 1.73 inches)
      DGS-3620-28SC - 441 x 310 x 44 mm (17.36 x 12.20 x 1.73 inches)
      DGS-3620-52T - 441 x 310 x 44 mm (17.36 x 12.20 x 1.73 inches)
      DGS-3620-52P - 441 x 310 x 44 mm (17.36 x 12.20 x 1.73 inches)
      Weight
      DGS-3620-28TC - 4.15 kg(9.15 lbs)
      DGS-3620-28PC - 5.76 kg (12.70 lbs)
      DGS-3620-28SC - 4.10 kg (9.04 lbs)
      DGS-3620-52T - 5.13 kg (11.31 lbs)
      DGS-3620-52P - 6.30 kg (13.89 lbs)
      Ventilation
      Smart fan
      Temperature
      Operating: 0° to 50°C
      Storage: -40° to 70°C
      Operating Humidity
      Operating: 10% ~ 90% Non-condensing
      Storage: 5% ~ 90% Non-condensing
      EMI/EMC
      FCC Class A, CE Class A, VCCI Class A, IC, C-Tick
      Safety
      CB, cUL, LVD
      Certification
      IPv6 Ready Logo Phase 2


      Software Feature
      Stackability
      Virtual stacking support
      D-Link Single IP Management
      Up to 32 devices per virtual stack
      Up to 20G stacking bandwidth
      Physical stacking
      Supports duplex chain/ring topology
      Up to 40G stacking bandwidth
      Up to 12 units per stack
      L2 Features
      MAC address table: 32K
      Flow control
      802.3x Flow control
      HOL blocking prevention
      Jumbo frames up to 13000 bytes
      IGMP snooping
      IGMP v1/v2/v3 snooping
      Supports 1K groups
      Port/host-based
      IGMP snooping fast leave
      MLD snooping
      MLD v1 snooping
      Supports 1K groups
      Host-based MLD snooping fast leave
      Spanning tree
      802.1D-2004 STP
      802.1w RSTP
      802.1Q-2005 MSTP
      BPDU filtering
      Root restriction
      Loopback detection
      802.3ad link aggregation
      Max. 32 groups per device
      8 Gigabit ports or 2 10-Gigabit ports per group
      Port mirroring
      Supports 4 mirroring groups
      Supports one-to-one, many-to-one, flow-based, and RSPAN mirroring
      L2 protocol tunneling
      ERPS (Ethernet Ring Protection Switching)
      VLAN
      VLAN group
      Max. 4K static VLAN groups
      Max. 255 dynamic VLAN groups
      802.1Q tagged VLAN
      802.1v protocol VLAN
      GVRP
      Double VLAN (Q-in-Q)
      Port-based Q-in-Q
      Selective Q-in-Q
      MAC-based VLAN
      VLAN trunking
      Super VLAN
      L3 Features
      256 IP interfaces
      Loopback interface
      UDP helper5
      VRRP
      Proxy ARP
      Gratuitous ARP
      L3 Routing
      12K routing entries shared by IPv4/v6
      Max. 12K IPv4 routes
      Max. 6K IPv6 routes
      8K L3 forwarding entries shared by IPv4/v6
      Max. 8K IPv4 entries
      Max. 4K IPv6 entries
      256 static routing entries for IPv4, 128 entries for IPv6
      Supports ECMP/WCMP
      Policy-based routing
      RIP v1/v2
      OSPF
      OSPF v2
      OSPF passive interface
      Stub/NSSA area
      OSPF equal cost route
      Multicasting
      2K multicast groups
      PIM-DM
      PIM-SM
      PIM sparse-dense mode
      IGMP v1/v2/v3
      QoS (Quality of Service)
      802.1p Class of Service (CoS)
      8 queues per port
      Queue handling
      Strict
      Weighted Round Robin (WRR)
      Strict + WRR
      WRED4
      CoS based on
      Switch port
      VLAN ID
      802.1p priority queues
      MAC address
      IPv4/v6 address
      DSCP
      Protocol type
      IPv6 traffic class
      IPv6 flow label
      TCP/UDP port
      User-defined packet content
      Supports following actions for flows:
      Remark 802.1p priority tag
      Remark TOS/DSCP tag
      Bandwidth control
      Flow statistics
      Committed Information Rate (CIR), min. granularity 1 Kbps.
      Bandwidth control
      Port-based (ingress/egress, min. granularity 8 Kbps)3
      Flow-based (ingress, min. granularity 8 Kbps)3
      Time-based QoS
      ACL (Access Control List)
      Ingress ACL: support up to 6 profiles and 256 rules per profile
      Egress ACL: support up to 4 profiles and 128 rules per profile
      ACL based on
      802.1p priority
      VLAN ID
      MAC address
      Ether type
      IPv4/v6 address
      DSCP
      Protocol type
      TCP/UDP port number
      IPv6 traffic class
      IPv6 flow label
      User-defined packet content
      ACL statistics
      Time-based ACL
      Green
      Power saving by link status
      Power saving by cable length
      Power saving by LED shut-off6
      Power saving by port shut-off6
      Power saving by system hibernation6
      802.3az Energy-Efficient Ethernet6
      Security
      SSH v2
      SSL v1/v2/v3
      Port security for up to 3328 MAC addresses for port/system/VLAN
      Broadcast/multicast/unicast storm control
      Traffic segmentation
      IP-MAC-port binding
      ARP packet inspection
      IP packet inspection
      DHCP snooping
      DHCPv6 and NDP snooping
      Supports up to 500 address binding entries per device
      D-Link safeguard engine
      DHCP server screening
      CPU interface filtering
      ARP spoofing prevention
      BPDU attack protection
      Unicast reverse path forwarding5
      DoS attack prevention5
      AAA
      802.1X
      Port-based access control
      Host-based access control
      Dynamic VLAN assignment
      Web-based Access Control (WAC)
      Port-based access control
      Host-based access control
      Dynamic VLAN assignment
      MAC-based Access Control (MAC)
      Port-based access control
      Host-based access control
      Dynamic VLAN assignment
      Japan Web-based Access Control (JWAC)
      Host-based access control
      Microsoft® NAP
      Supports 802.1X NAP
      Supports DHCP NAP
      Guest VLAN
      RADIUS and TACACS+ authentication for switch access
      4-Level user account
      Management
      Web-based GUI
      Command Line Interface (CLI)
      Telnet server
      Telnet client
      TFTP client
      ZModem
      SNMP v1/v2c/v3
      SNMP trap
      System log
      RMON v1
      Supports 1,2,3,9 groups
      RMON v2
      Supports ProbeConfig group
      sFlow
      LLDP/LLDP-MED
      BootP/DHCP client
      DHCP auto-configuration
      DHCP relay
      DHCP relay option 60; 61
      DHCP relay option 82
      DHCP server
      Flash file system
      Multiple images
      Multiple configurations
      CPU monitoring
      IPv4/IPv6 DNS client
      Debug command
      SNTP
      ICMPv6
      DHCPv6 client
      DHCPv6 relay
      DHCPv6 server
      DHCPv6 PD4
      Trusted host
      MTU setting
      Microsoft® NLB support
      Secure FTP5
      DHCPv6 PD5
      OAM
      802.3ah Ethernet link OAM
      Cable diagnostics
      802.3ah D-Link extension: D-Link Unidirectional Link Detection (DULD)
      IEEE1588 Precision Time Protocol (PTP)
      MIB/IETF  Standards
      RFC1213 MIB-II
      RFC1493, 4188 bridge MIB
      RFC1907 SNMPv2 MIB
      RFC2571~2576 SNMP MIB
      RFC1271, 2819 RMON MIB
      RFC2021 RMON v2 MIB
      RFC1398, 1643, 1650, 2358, 2665 Ether-like MIB
      RFC2668 MAU MIB
      RFC2674, 4363 802.1p MIB
      RFC2233, 2863 IF MIB
      RFC2618 RADIUS authentication client MIB
      RFC1724 RIP v2 MIB
      RFC1850 OSPF v2 MIB
      RFC2096, 4292 IP forwarding table MIB (CIDR)
      RFC2787 VRRP MIB
      RFC2932 IPv4 multicast routing MIB
      RFC2934 PIM MIB for IPv4
      RFC2620 RADIUS accounting client MIB
      RFC2933 IGMP MIB
      RFC2925 ping MIB
      RFC2925 traceroute MIB
      D-Link private MIB
      RFC768 UDP
      RFC783 TFTP
      RFC 791 IP
      RFC 792 ICMP
      RFC 793 TCP
      RFC 826 ARP
      RFC854 Telnet
      RFC951, 1542, 2131 BootP
      RFC2068, 2618 HTTP
      RFC2338 VRRP
      RFC2529, 3053, 3056 IPv6 Tunnel
      RFC2138 RADIUS
      RFC2139 RADIUS Accounting
      RFC1492 TACACS
      RFC3176 sFlow
      RFC2598 DiffServ Expedited Forwarding (EF)
      RFC2460 IPv6
      RFC2461, 4861 IPv6 Neighbor Discovery (ND)
      RFC2462, 4862 IPv6 stateless address autoconfiguration
      RFC1981 IPv6 path MTU discovery
      RFC4213 IPv4/IPv6 dual stack

      Enhanced Image (EI) Features
      L3 Features
      IPv6 tunneling
      Static
      ISATAP
      GRE
      6to4
      L3 Routing
      RIPng (IPv6)
      OSPF
      OSPF v3 (IPv6)
      BGP v4
      Multicasting
      PIM-SM v6
      DVMRP v3
      OAM
      802.1ag Connectivity Fault Management (CFM)
      ITU-T Y.1731

      1 For DGS-3620-28TC/28SC/28PC models only.
      2 For DGS-3620-28PC/52P models only.
      3 After R 2.5, minimum granularity down to 8 Kbps.
      4 By default, the fan speed is low. When the temperature inside the chassis is over 40°C (104 °F) , the fan switches to high speed until the temperature drops below 35 °C (95 °F).
      5 R 2.5 is supported.
      6 Supported by hardware version B1 and later.

      Zařazení produktu

      DLE KATEGORIE



      DLE VÝROBCE



      Poslat info

      Dotaz k tomuto produktu

      Váš e-mail
      Dotaz


      Nalezli jste jinde na internetu nižší cenu?

      Váš e-mail
      Cena bez DPH
      Cena s DPH
      WWW
      Komentář
      Mám o tento produkt zájem


      Zaslat informaci o produktu známému

      Váš e-mail
      Zaslat na e-mail
      Komentář


      Nalezli jste chybu?

      Popis závady
      Váš e-mail


      Parametry

      Obecné vlastnosti

      AirFlow Není specifikováno (či jiné)
      L2/L3 L3
      Počet převažujících portů 48
      Počet uplink portů 4
      Počet VLANů 4000
      POE ANO
      Propustnost (Gbps) 176
      Převažující port Ethernet 1GbE-T
      Redundantní zdroj Volitelně
      Stohovatelnost 12
      Uplink port Ethernet 10GbE SFP+

      Historie cen

      23.7.2019 16.3.2023
      108 350 127 710

      K provozování našeho webu www.abacus.cz využíváme takzvané cookies. Cookies jsou soubory sloužící k přizpůsobení obsahu webu, k měření jeho funkčnosti a obecně k zajištění vaší maximální spokojenosti. Používáním tohoto webu souhlasíte se způsobem, jakým s cookies nakládáme. Více informací...
